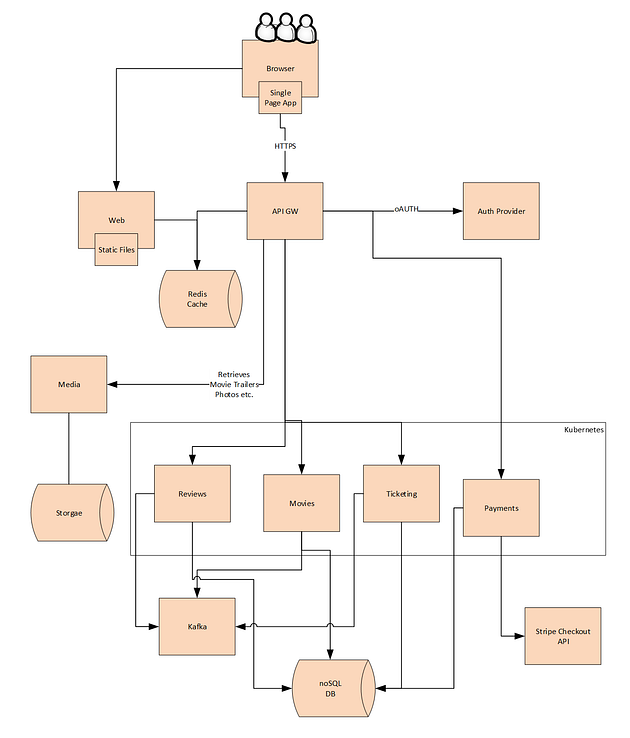

If you work in software engineering or within technology, you might have seen a diagram that looks like this:

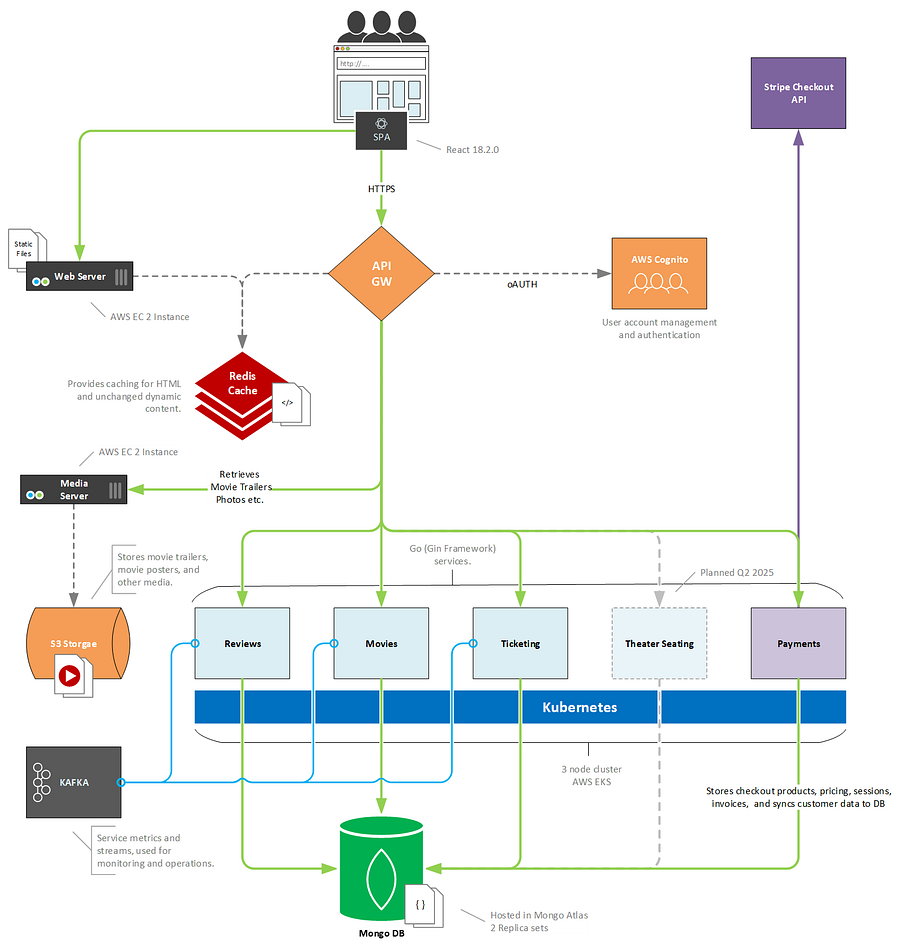

You might be the author of such a diagram and see nothing wrong. It’s all there — the services, arrows, some protocol information, etc. You understand it well because you drew it, but your audience, they’re looking at a dozen or so beige boxes within a bird’s nest of tangled arrows. Let’s make your diagrams as clean as your code and turn them into something like this:
Why Graphic Design Matters in Software Design
The age-old saying, “a picture is worth 1000 words,” still rings true today, especially within technical settings. As a software engineer or architect, your role is to effectively communicate a technical solution to other engineers, leadership, customers, etc. The more information you can communicate within a diagram, the less you need to explain it using words.
